My Watch - Armitron 40 / 8065



Purchased this Armitron Timepiece on June 12, 2010.

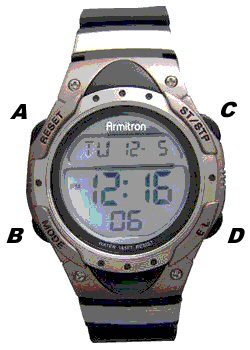

 A Reset                  C St/Stp
 B Mode                  D Light


The included instruction paper also called it an Armitron MD0346-R(T)-2.

I learned from my call to them that this is the Model Number they want when you talk to them.

  Armitron MD0346-R(T)-2 Features

     _____________________________________

  • Time Telling Mode (Hours, Minutes, Seconds, Month, Date and Day of the Week)
  • 24 Hour Alarm
  • Hourly Chime. One 'Beep' sound every full Hour
  • Chronograph Mode: Minutes, Seconds and 1/100 of a Second with Lap Operation.
  • Countdown Timer
  • Second Time Zone
  • 12/24 Hour (Military Time)
  • Birthday Mode
  • Water Resistant as indicated on the watch
  • INSTALITE - Electro Luminescent Display
EL Light Feature
Press 'D' (Light) in any mode to illuminate the watch face. The backlight will remain lit for 3 seconds.
NOTE: Excessive use of the light will shorten batter life.
And my little note. The Illumination feature on this watch is rather cool. The top portion shows in Orange and the bottom in Blue.

  Selecting Armitron MD0346-R(T)-2 Features

     _____________________________________

  1. Time Telling Mode displays Hours, Minutes, Seconds, Month, Date, and Day of the Week.

  2. From Time Telling Mode, press 'B' (Mode) once. Chronograph Mode appears. Press 'B' (Mode) five times to return to Time Telling Mode.

  3. From Time Telling Mode, press 'B' (Mode) twice. Countdown Timer Mode appears. Press 'B' (Mode) four times to return to Time Telling Mode.

  4. From Time Telling Mode, press 'B' (Mode) three times. Alarm Mode appears. Press 'B' (Mode) three times to return to Time Telling Mode.

  5. From Time Telling Mode, press 'B' (Mode) four times. Second Time Zone appears. Press 'B' (Mode) twice to return to Time Telling Mode.

  6. From Time Telling Mode, press 'B' (Mode) five times. Birthday Mode appears. Press 'B' (Mode) once to return to Time Telling Mode.

  Setting Time and Calendar

     _____________________________________

  1. From Time Telling Mode, press and hold 'A' (Reset). Seconds
    flash. Press 'C' (St/Stp) to zero out the Seconds.

  2. Press 'B' (Mode). Hours flash. Press 'C' (St/Stp) to advance the Hour.
    Note: Pressing and holding 'C' will advance digits rapidly.
    When 12 Hour Format is selected; 'AM ' indicates a.m. times
    and 'PM' indicates p.m. times.


  3. Press 'B' (Mode), Minutes flash, press 'C' (St/Stp) to advance these

  4. Press 'B' (Mode) again, the Year flashes, press 'C' (St/Stp) to advance the Year

  5. Press 'B' (Mode) again, Month flashes, press 'C' (St/Stp) to advance the Month

  6. Press 'B' (Mode) again, Date flashes, press 'C' (St/Stp) to advance the Date

  7. Press 'A' (Reset) to end sequence and return to Time Telling Mode.

  12/24 Hour (Military Time)

    From Time Telling Mode, press 'C' (St/Stp) to enter 12/24 Hour Format. If the time of day is before noon, you will only see the AM indicator appear for 12 hour format and disappear for the 24 hour format. Course, after noon you will also see 12 added to the hourly number.

  Stop Watch

     _____________________________________

  1. From the Time Telling Mode, press 'B' (Mode) once to enter the Chronograph Mode.

  2. Press 'C' (St/Stp) to start timing.

  3. Press 'C' (St/Stp) again to stop timing.

  4. Press 'A' (Reset) to reset to zero.

  5. Press 'B' (Mode) five time to return to Time Telling Mode.
    Measuring range is zero to 23:59':59'

  Split Time

     _____________________________________

  1. While in the Chronograph Mode, press 'C' (St/Stp) to start timing.

  2. Press 'A' (Reset) to display the Split Time.

  3. Press 'A' (Reset) to clear the Split Time and continue time measurement.

  4. Repeat steps #2 and #3 to measure multi-Split Times.

  5. Press 'C' (St/Stp) to stop the Chronograph.

  6. Press 'A' (Reset) to reset the Chronograph to zero.

  7. Press 'B' (Mode) five time to return to Time Telling Mode.

  Countdown Timer

     _____________________________________

  1. From the Time Telling Mode, press 'B' (Mode) twice to enter the Timer Mode.

  2. Press 'A' (Reset): Hours Flash

  3. Press 'C' (St/Stp) to increase the Hour, press and hold for quick change.

  4. Press 'B' (Mode) to select the Minutes.

  5. Press 'C' (St/Stp) to increase the Minute number.

  6. Repeat steps #4 and #5, the selection in the followinf sequence: Hour-Minutes-Seconds.

  7. Press 'A' (Reset) to exit the setting mode.

  Countdown Time Operation

  1. While in the Timer Mode, press 'C' (St/Stp) to start the countdown.

  2. Press 'C' (St/Stp) again to pause the countdown.

  3. When the countdown reaches zero, the alarm will sound about 60 seconds. Press any button to stop the alarm.

  4. Press 'B' (Mode) four times to return to the Time Telling Mode.

  Activating Alarm and Hourly Chime

     _____________________________________

  1. From the Time Telling Mode, press 'B' (Mode) three times to enter the Alarm Mode.

  2. Press 'C' to turn ON/OFF the Chime, press 'D' to select Alarms 1 to 5.

  3. While in Alarms 1 to 5, press 'C' (St/Stp) to turn ON/OFF the Alarm.

  Setting the Alarm

  1. While in the Alarm Mode, press 'A' (Reset); Hours flash

  2. Press 'C' (St/Stp) to increase the Hour, press and hold for a quick change.

  3. Press 'B' (Mode) to select the Minutes.

  4. Press 'C' (St/Stp) to increase the Minute number

  5. The alarm will sound at the preset Alarm time each day for about 60 seconds. Press any button to stop the alarm.

  6. Setting the operation of the Alarms 1 to 5 is the same.

  7. Press 'A' (Reset) to end the sequence.

  8. Press 'B' (Mode) three times to return to the Time Telling Mode.

  Dual Time Zone

     _____________________________________

  1. From the Time Telling Mode, press 'B' (Mode) four times to enter the Second Time Zone.

  2. Press 'A' (Reset); Hours flash

  3. Press 'C' (St/Stp) to increase the Hour, press and hold for a quick change.

  4. Press 'B' (Mode) to select the Minutes.

  5. Press 'C' (St/Stp) to change the Minutes, each press change 30 minutes...????

  6. Press 'A' (Reset) to end the sequence.

  7. Press 'B' (Mode) twice to return to the Time Telling Mode.

  Birthday Mode

     _____________________________________

  1. From the Time Telling Mode, press 'B' (Mode) five times to enter the Birthday Mode. Press 'C' (St/Stp) to ON/OFF the Birthday.

  2. Press 'A' (Reset); Months flash

  3. Press 'C' (St/Stp) to increase the Month, press and hold for a quick change.

  4. Press 'B' (Mode) to change the next selections: Month-Date-Hour-Minutes-ON/OFF

  5. Repeat steps #3 and #4 to complete the Birthday setting.

  6. Press 'A' (Reset) to exit the setting mode.

  7. Press 'D' (Light) to advance to the next Birthday.

  8. The Setting operation for Birthdays 1-8 is the same.

  9. The alarm will sound on the preset Birthday for about 60 seconds. Press any button to stop the alarm.

  10. Press 'B' (Mode) once to return to the Time Telling Mode.

  Armitron MD0346-R(T)-2 Battery

   Change the battery when the watch becomes slow, the readout darkens or does not appear, or the backlight fails. Before removing the old battery, be sure to denote its polarity so that the new battery is installed in exactly the same way. Replace with one (1) CR2025 or equivalent only.
   This watch contains precise electronic components and should only be opened by a qualified watch technician. However, it is not necessary to return your watch to the manufacturer for battery replacement. It is recommended that you bring your timepiece to a local jeweler.
Need clarification as to whether it is a CR2016 or CR2025??? This watch has apparently been out for a few years -but- finding info specific to it is a bear. Most of the info has 'other' model numbers on it. May be for this watch also but it is not stated so.
     Ok. I called Armitron and they said it is the CR2025.

How it works
A battery powers a piece of quartz shaped like a tuning fork. An electrical charge from the battery causes the quartz to vibrate, creating a steady frequency used to count or measure time at an extremely accurate pace.

  Kohls Add


Armitron 40 / 8065

    This WebPage was created just for fun -and- cause I found Info on this watch hard to find. A number of people were already complaining about that. Then there are those that have lost the instructions (like I so oftern do ... they're small and tiny!!). Anyway, if you can benifit ... great. If not ... well Hello and thanks for stopping by.
